Description

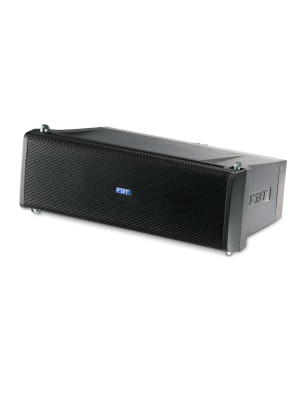

FBT Mitus 206 LA – Active Line Array Speaker 900 Watt The FBT Mitus 206 LA is a compact, active line-array module designed for maximum performance in concert, stage, conference, and installation environments. This small yet powerful speaker delivers outstanding output and sonic precision, while remaining lightweight and easy to transport.
Main Features Bi-amped two-way design: separate Class-D amplifiers for the low-frequency section (LF – 600 W RMS) and the high-frequency section (HF – 300 W RMS), ensuring clean, dynamic sound without distortion.
Total and peak power: 600 W RMS (LF) + 300 W RMS (HF), with peak power up to 1200 W + 600 W.
Frequency response: from 68 Hz to 20 kHz (–6 dB) for a full and balanced audio performance.
High SPL: 125 dB continuous, 134 dB peak – enough for large events and open-air venues.
B&C neodymium drivers: 2 × 6.5″ woofers (1.7″ voice coil) and 1 × 1.4″ compression driver (2.5″ voice coil) guarantee clarity and dynamic performance.
DSP control: built-in DSP processor with 8 presets, HF level adjustment ±5 dB, high-pass filter, and ground-lift function.
Wide coverage: 100° horizontal × 10° vertical waveguide, with inter-module angle adjustment from 0–10° in 2° steps, simplifying line-array system design.
Durable construction: high-impact polypropylene enclosure, lightweight (14 kg net, 15.7 kg shipping), with integrated rigging system for flying and stacking.
Input panel: XLR input with loop-out, controls for volume, preset, HF level, HP filter, and ground-lift.
Power supply: switch-mode power supply, power requirement approx. 640 VA, includes 5 m PowerCON cable.
Applications The FBT Mitus 206 LA is a perfect choice for standalone use on a stand or pole, as well as for building clusters in larger line-array systems (up to 12 modules per array). It pairs seamlessly with FBT Mitus 212FSA or 118SA subwoofers. The system is well suited for theaters, concert halls, clubs, sports arenas, and outdoor events where accurate coverage and high output are essential.
Dimensions and weight Net dimensions (W × H × D): 574 × 220 × 383 mm Shipping dimensions: 655 × 455 × 280 mm Net weight: 14 kg Shipping weight: approx. 15.7 kg Summary The FBT Mitus 206 LA combines compact size and low weight with power, precision, and flexibility. With advanced DSP, robust build quality, and line-array scalability, it is an exceptionally versatile solution for both mobile sound systems and fixed professional installations.
